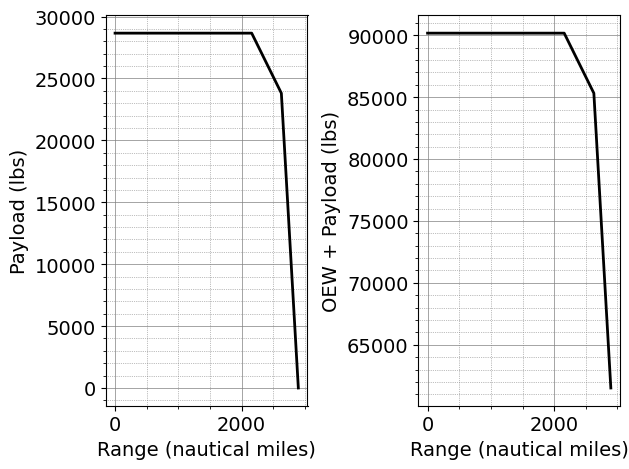

Tutorial 21 - Payload Range Diagram#
Welcome to this tutorial on creating a payload range diagram of a turbofan aircraft using RCAIDE. This guide will walk you through the code, explain its components, and highlight where modifications can be made to customize the simulation for different vehicle designs.
1. Header and Imports#
The Imports section is divided into two parts: general-purpose Python libraries and simulation-specific libraries.
[1]:
# python imports
import numpy as np
import sys
import matplotlib.pyplot as plt
import os
import sys
from copy import deepcopy
# local imports
sys.path.append(os.path.join( os.path.split(os.path.split(sys.path[0])[0])[0], 'Vehicles'))
2. RCAIDE Imports#
The RCAIDE Imports section includes the core modules needed for the simulation. These libraries provide specialized classes and tools for building, analyzing, and running aircraft models.
Key Imports:#
RCAIDE: The core package is imported directly. This approach allows us to access specific classes and methods from RCAIDE without repeatedly importing individual components at the top of the script.
``Units`` Module: The Units module is a standardized way to handle unit conversions within RCAIDE. It ensures consistent units across all inputs and outputs, reducing the likelihood of conversion errors.
design_turbofan, wing_planform, segment_properties : These functions are used in designing the vehicle to size the engines based on certain parameters, and create geometry.
compute_payload_range_diagram : This function is used to compute the payload range diagram of the aircraft. It accepts inputs of the vehicle and analysis conditions and returns a payload range diagram.
[2]:
# RCAIDE imports
import RCAIDE
from RCAIDE.Framework.Core import Units , Container
from RCAIDE.Library.Methods.Performance.compute_payload_range_diagram import compute_payload_range_diagram
from RCAIDE.Library.Methods.Powertrain.Propulsors.Turbofan import design_turbofan
from RCAIDE.Library.Methods.Geometry.Planform import wing_planform, segment_properties
from RCAIDE.Library.Plots import *
3. Vehicle Setup#
The ``vehicle_setup`` function defines the baseline configuration of the aircraft. This section builds the vehicle step-by-step by specifying its components, geometric properties, and high-level parameters.
A detailed description of the vehicle setup is provided in the Tutorial 1.
[3]:
# ----------------------------------------------------------------------------------------------------------------------
# Build the Vehicle
# ----------------------------------------------------------------------------------------------------------------------
def vehicle_setup():
#------------------------------------------------------------------------------------------------------------------------------------
# ################################################# Vehicle-level Properties ########################################################
#------------------------------------------------------------------------------------------------------------------------------------
vehicle = RCAIDE.Vehicle()
vehicle.tag = 'Embraer_E190AR'
# mass properties (http://www.embraercommercialaviation.com/AircraftPDF/E190_Weights.pdf)
vehicle.mass_properties.max_takeoff = 51800. # kg
vehicle.mass_properties.operating_empty = 27900. # kg
vehicle.mass_properties.takeoff = 51800. # kg
vehicle.mass_properties.max_zero_fuel = 40900. # kg
vehicle.mass_properties.max_payload = 13063. # kg
vehicle.mass_properties.max_fuel = 13100. # kg
vehicle.mass_properties.cargo = 0.0 # kg
vehicle.mass_properties.center_of_gravity = [[16.8, 0, 1.6]]
vehicle.mass_properties.moments_of_inertia.tensor = [[10 ** 5, 0, 0],[0, 10 ** 6, 0,],[0,0, 10 ** 7]]
# envelope properties
vehicle.flight_envelope.ultimate_load = 3.5
vehicle.flight_envelope.ultimate_load = 3.75
vehicle.flight_envelope.positive_limit_load = 2.5
vehicle.flight_envelope.design_mach_number = 0.78
vehicle.flight_envelope.design_cruise_altitude = 35000*Units.feet
vehicle.flight_envelope.design_range = 2000 * Units.nmi
# basic parameters
vehicle.reference_area = 92.
vehicle.passengers = 106
vehicle.systems.control = "fully powered"
vehicle.systems.accessories = "medium range"
#------------------------------------------------------------------------------------------------------------------------------------
# ######################################################## Wings ####################################################################
#------------------------------------------------------------------------------------------------------------------------------------
# ------------------------------------------------------------------
# Main Wing
# ------------------------------------------------------------------
wing = RCAIDE.Library.Components.Wings.Main_Wing()
wing.tag = 'main_wing'
wing.areas.reference = 92.0
wing.aspect_ratio = 8.4
wing.chords.root = 6.2
wing.chords.tip = 1.44
wing.sweeps.quarter_chord = 23.0 * Units.deg
wing.thickness_to_chord = 0.1
wing.taper = 0.28
wing.dihedral = 5.00 * Units.deg
wing.spans.projected = 28.72
wing.origin = [[13.0,0,-1.]]
wing.vertical = False
wing.symmetric = True
wing.high_lift = True
wing.areas.exposed = 0.80 * wing.areas.wetted
wing.twists.root = 2.0 * Units.degrees
wing.twists.tip = 0.0 * Units.degrees
wing.dynamic_pressure_ratio = 1.0
ospath = os.path.abspath(os.path.join('Notebook'))
separator = os.path.sep
rel_path = os.path.dirname(ospath) + separator + '..' + separator + '..' + separator + 'VnV' + separator + 'Vehicles' + separator
segment = RCAIDE.Library.Components.Wings.Segments.Segment()
segment.tag = 'root'
segment.percent_span_location = 0.0
segment.twist = 0. * Units.deg
segment.root_chord_percent = 1.
segment.thickness_to_chord = .11
segment.dihedral_outboard = 5. * Units.degrees
segment.sweeps.quarter_chord = 20.6 * Units.degrees
root_airfoil = RCAIDE.Library.Components.Airfoils.Airfoil()
root_airfoil.coordinate_file = rel_path + 'Airfoils' + separator + 'B737a.txt'
segment.append_airfoil(root_airfoil)
wing.segments.append(segment)
segment = RCAIDE.Library.Components.Wings.Segments.Segment()
segment.tag = 'yehudi'
segment.percent_span_location = 0.348
segment.root_chord_percent = 0.60
segment.thickness_to_chord = .11
segment.dihedral_outboard = 4 * Units.degrees
segment.sweeps.quarter_chord = 24.1 * Units.degrees
yehudi_airfoil = RCAIDE.Library.Components.Airfoils.Airfoil()
yehudi_airfoil.coordinate_file= rel_path+ 'Airfoils' + separator + 'B737b.txt'
segment.append_airfoil(yehudi_airfoil)
wing.segments.append(segment)
segment = RCAIDE.Library.Components.Wings.Segments.Segment()
segment.tag = 'section_2'
segment.percent_span_location = 0.961
segment.root_chord_percent = 0.25
segment.thickness_to_chord = .11
segment.dihedral_outboard = 70. * Units.degrees
segment.sweeps.quarter_chord = 40. * Units.degrees
mid_airfoil = RCAIDE.Library.Components.Airfoils.Airfoil()
mid_airfoil.coordinate_file = rel_path + 'Airfoils' + separator + 'B737c.txt'
segment.append_airfoil(mid_airfoil)
wing.segments.append(segment)
segment = RCAIDE.Library.Components.Wings.Segments.Segment()
segment.tag = 'Tip'
segment.percent_span_location = 1.
segment.root_chord_percent = 0.070
segment.thickness_to_chord = .11
segment.dihedral_outboard = 0.
segment.sweeps.quarter_chord = 0.
tip_airfoil = RCAIDE.Library.Components.Airfoils.Airfoil()
tip_airfoil.coordinate_file = rel_path + 'Airfoils' + separator + 'B737d.txt'
segment.append_airfoil(tip_airfoil)
wing.segments.append(segment)
# Fill out more segment properties automatically
wing = segment_properties(wing)
# control surfaces -------------------------------------------
flap = RCAIDE.Library.Components.Wings.Control_Surfaces.Flap()
flap.tag = 'flap'
flap.span_fraction_start = 0.1
flap.span_fraction_end = 0.85
flap.deflection = 0.0 * Units.deg
flap.chord_fraction = 0.28
flap.configuration_type = 'double_slotted'
wing.append_control_surface(flap)
slat = RCAIDE.Library.Components.Wings.Control_Surfaces.Slat()
slat.tag = 'slat'
slat.span_fraction_start = 0.324
slat.span_fraction_end = 0.963
slat.deflection = 1.0 * Units.deg
slat.chord_fraction = 0.1
wing.append_control_surface(slat)
wing = wing_planform(wing)
wing.areas.exposed = 0.80 * wing.areas.wetted
wing.twists.root = 2.0 * Units.degrees
wing.twists.tip = 0.0 * Units.degrees
wing.dynamic_pressure_ratio = 1.0
# add to vehicle
vehicle.append_component(wing)
# ------------------------------------------------------------------
# Horizontal Stabilizer
# ------------------------------------------------------------------
wing = RCAIDE.Library.Components.Wings.Horizontal_Tail()
wing.tag = 'horizontal_stabilizer'
wing.areas.reference = 26.0
wing.aspect_ratio = 5.5
wing.sweeps.quarter_chord = 34.5 * Units.deg
wing.thickness_to_chord = 0.1
wing.taper = 0.2
wing.dihedral = 8.4 * Units.degrees
wing.origin = [[31,0,1.5]]
wing.vertical = False
wing.symmetric = True
wing.high_lift = False
wing = wing_planform(wing)
wing.areas.exposed = 0.9 * wing.areas.wetted
wing.twists.root = 2.0 * Units.degrees
wing.twists.tip = 2.0 * Units.degrees
wing.dynamic_pressure_ratio = 0.90
# add to vehicle
vehicle.append_component(wing)
# ------------------------------------------------------------------
# Vertical Stabilizer
# ------------------------------------------------------------------
wing = RCAIDE.Library.Components.Wings.Vertical_Tail()
wing.tag = 'vertical_stabilizer'
wing.areas.reference = 16.0
wing.aspect_ratio = 1.7
wing.sweeps.quarter_chord = 35. * Units.deg
wing.thickness_to_chord = 0.1
wing.taper = 0.31
wing.dihedral = 0.00
wing.origin = [[30.4,0,1.675]]
wing.vertical = True
wing.symmetric = False
wing.high_lift = False
wing = wing_planform(wing)
wing.areas.exposed = 0.9 * wing.areas.wetted
wing.twists.root = 0.0 * Units.degrees
wing.twists.tip = 0.0 * Units.degrees
wing.dynamic_pressure_ratio = 1.00
# add to vehicle
vehicle.append_component(wing)
# ------------------------------------------------------------------
# Fuselage
# ------------------------------------------------------------------
fuselage = RCAIDE.Library.Components.Fuselages.Tube_Fuselage()
fuselage.origin = [[0,0,0]]
cabin = RCAIDE.Library.Components.Fuselages.Cabins.Cabin()
economy_class = RCAIDE.Library.Components.Fuselages.Cabins.Classes.Economy()
economy_class.number_of_seats_abrest = 4
economy_class.number_of_rows = 23
economy_class.galley_lavatory_percent_x_locations = [0, 1]
economy_class.emergency_exit_percent_x_locations = [0.5, 0.5]
economy_class.type_A_exit_percent_x_locations = [0, 1]
cabin.append_cabin_class(economy_class)
fuselage.append_cabin(cabin)
fuselage.fineness.nose = 1.28
fuselage.fineness.tail = 3.48
fuselage.lengths.nose = 6.0
fuselage.lengths.tail = 9.0
fuselage.lengths.cabin = 21.24
fuselage.lengths.total = 36.24
fuselage.width = 3.01 * Units.meters
fuselage.heights.maximum = 3.35
fuselage.heights.at_quarter_length = 3.35
fuselage.heights.at_three_quarters_length = 3.35
fuselage.heights.at_wing_root_quarter_chord = 3.35
fuselage.areas.side_projected = 239.20
fuselage.areas.wetted = 327.01
fuselage.areas.front_projected = 8.0110
fuselage.effective_diameter = 3.18
fuselage.differential_pressure = 10**5 * Units.pascal # Maximum differential pressure
# Segment
segment = RCAIDE.Library.Components.Fuselages.Segments.Segment()
segment.tag = 'segment_0'
segment.percent_x_location = 0.0000
segment.percent_z_location = -0.00144
segment.height = 0.0100
segment.width = 0.0100
fuselage.segments.append(segment)
# Segment
segment = RCAIDE.Library.Components.Fuselages.Segments.Segment()
segment.tag = 'segment_1'
segment.percent_x_location = 0.00576
segment.percent_z_location = -0.00144
segment.height = 0.7500
segment.width = 0.6500
fuselage.segments.append(segment)
# Segment
segment = RCAIDE.Library.Components.Fuselages.Segments.Segment()
segment.tag = 'segment_2'
segment.percent_x_location = 0.02017
segment.percent_z_location = 0.00000
segment.height = 1.52783
segment.width = 1.20043
fuselage.segments.append(segment)
# Segment
segment = RCAIDE.Library.Components.Fuselages.Segments.Segment()
segment.tag = 'segment_3'
segment.percent_x_location = 0.03170
segment.percent_z_location = 0.00000
segment.height = 1.96435
segment.width = 1.52783
fuselage.segments.append(segment)
# Segment
segment = RCAIDE.Library.Components.Fuselages.Segments.Segment()
segment.tag = 'segment_4'
segment.percent_x_location = 0.04899
segment.percent_z_location = 0.00431
segment.height = 2.72826
segment.width = 1.96435
fuselage.segments.append(segment)
# Segment
segment = RCAIDE.Library.Components.Fuselages.Segments.Segment()
segment.tag = 'segment_5'
segment.percent_x_location = 0.07781
segment.percent_z_location = 0.00861
segment.height = 3.49217
segment.width = 2.61913
fuselage.segments.append(segment)
# Segment
segment = RCAIDE.Library.Components.Fuselages.Segments.Segment()
segment.tag = 'segment_6'
segment.percent_x_location = 0.10375
segment.percent_z_location = 0.01005
segment.height = 3.70130
segment.width = 3.05565
fuselage.segments.append(segment)
# Segment
segment = RCAIDE.Library.Components.Fuselages.Segments.Segment()
segment.tag = 'segment_7'
segment.percent_x_location = 0.16427
segment.percent_z_location = 0.01148
segment.height = 3.92870
segment.width = 3.71043
fuselage.segments.append(segment)
# Segment
segment = RCAIDE.Library.Components.Fuselages.Segments.Segment()
segment.tag = 'segment_8'
segment.percent_x_location = 0.22478
segment.percent_z_location = 0.01148
segment.height = 3.92870
segment.width = 3.92870
fuselage.segments.append(segment)
# Segment
segment = RCAIDE.Library.Components.Fuselages.Segments.Segment()
segment.tag = 'segment_9'
segment.percent_x_location = 0.69164
segment.percent_z_location = 0.01292
segment.height = 3.81957
segment.width = 3.81957
fuselage.segments.append(segment)
# Segment
segment = RCAIDE.Library.Components.Fuselages.Segments.Segment()
segment.tag = 'segment_10'
segment.percent_x_location = 0.71758
segment.percent_z_location = 0.01292
segment.height = 3.81957
segment.width = 3.81957
fuselage.segments.append(segment)
# Segment
segment = RCAIDE.Library.Components.Fuselages.Segments.Segment()
segment.tag = 'segment_11'
segment.percent_x_location = 0.78098
segment.percent_z_location = 0.01722
segment.height = 3.49217
segment.width = 3.71043
fuselage.segments.append(segment)
# Segment
segment = RCAIDE.Library.Components.Fuselages.Segments.Segment()
segment.tag = 'segment_12'
segment.percent_x_location = 0.85303
segment.percent_z_location = 0.02296
segment.height = 3.05565
segment.width = 3.16478
fuselage.segments.append(segment)
# Segment
segment = RCAIDE.Library.Components.Fuselages.Segments.Segment()
segment.tag = 'segment_13'
segment.percent_x_location = 0.91931
segment.percent_z_location = 0.03157
segment.height = 2.40087
segment.width = 1.96435
fuselage.segments.append(segment)
# Segment
segment = RCAIDE.Library.Components.Fuselages.Segments.Segment()
segment.tag = 'segment_14'
segment.percent_x_location = 1.00
segment.percent_z_location = 0.04593
segment.height = 1.09130
segment.width = 0.21826
fuselage.segments.append(segment)
# add to vehicle
vehicle.append_component(fuselage)
#------------------------------------------------------------------------------------------------------------------------------------
# Landing Gear
#------------------------------------------------------------------------------------------------------------------------------------
main_gear = RCAIDE.Library.Components.Landing_Gear.Main_Landing_Gear()
main_gear.tire_diameter = 1.12000 * Units.m
main_gear.strut_length = 1.8 * Units.m
main_gear.units = 2 # Number of main landing gear
main_gear.wheels = 2 # Number of wheels on the main landing gear
vehicle.append_component(main_gear)
nose_gear = RCAIDE.Library.Components.Landing_Gear.Nose_Landing_Gear()
nose_gear.tire_diameter = 0.6858 * Units.m
nose_gear.units = 1 # Number of nose landing gear
nose_gear.wheels = 2 # Number of wheels on the nose landing gear
nose_gear.strut_length = 1.3 * Units.m
vehicle.append_component(nose_gear)
#------------------------------------------------------------------------------------------------------------------------------------
# Fuel Network
#------------------------------------------------------------------------------------------------------------------------------------
#initialize the fuel network
net = RCAIDE.Framework.Networks.Fuel()
#------------------------------------------------------------------------------------------------------------------------------------
# Fuel Distrubition Line
#------------------------------------------------------------------------------------------------------------------------------------
fuel_line = RCAIDE.Library.Components.Powertrain.Distributors.Fuel_Line()
#------------------------------------------------------------------------------------------------------------------------------------
# Fuel Tank & Fuel
#------------------------------------------------------------------------------------------------------------------------------------
fuel_tank = RCAIDE.Library.Components.Powertrain.Sources.Fuel_Tanks.Fuel_Tank()
fuel_tank.origin = [[13.0,0,-1.]]
# append correct fuel
fuel = RCAIDE.Library.Attributes.Propellants.Jet_A()
fuel.mass_properties.mass = vehicle.mass_properties.max_takeoff-vehicle.mass_properties.max_fuel
fuel.origin = [[13.0,0,-1.]]
fuel.mass_properties.center_of_gravity = [[13.0,0,-1.]]
fuel.internal_volume = fuel.mass_properties.mass/fuel.density
fuel_tank.fuel = fuel
fuel_line.fuel_tanks.append(fuel_tank)
#------------------------------------------------------------------------------------------------------------------------------------
# Propulsor
#------------------------------------------------------------------------------------------------------------------------------------
turbofan = RCAIDE.Library.Components.Powertrain.Propulsors.Turbofan()
turbofan.tag = 'starboard_propulsor'
turbofan.length = 3.7
turbofan.bypass_ratio = 5.4
turbofan.diameter = 1.4
turbofan.design_altitude = 35000.0*Units.ft
turbofan.design_mach_number = 0.78
turbofan.design_thrust = 37278.0* Units.N#/2
# Nacelle
nacelle = RCAIDE.Library.Components.Nacelles.Body_of_Revolution_Nacelle()
nacelle.diameter = 2.05
nacelle.length = 2.71
nacelle.tag = 'nacelle_1'
nacelle.inlet_diameter = 2.0
nacelle.origin = [[12.0,4.38,-2.1]]
nacelle.areas.wetted = 1.1*np.pi*nacelle.diameter*nacelle.length
nacelle_airfoil = RCAIDE.Library.Components.Airfoils.NACA_4_Series_Airfoil()
nacelle_airfoil.NACA_4_Series_code = '2410'
nacelle.append_airfoil(nacelle_airfoil)
turbofan.nacelle = nacelle
# fan
fan = RCAIDE.Library.Components.Powertrain.Converters.Fan()
fan.tag = 'fan'
fan.polytropic_efficiency = 0.93
fan.pressure_ratio = 1.7
turbofan.fan = fan
# working fluid
turbofan.working_fluid = RCAIDE.Library.Attributes.Gases.Air()
ram = RCAIDE.Library.Components.Powertrain.Converters.Ram()
ram.tag = 'ram'
turbofan.ram = ram
# inlet nozzle
inlet_nozzle = RCAIDE.Library.Components.Powertrain.Converters.Compression_Nozzle()
inlet_nozzle.tag = 'inlet nozzle'
inlet_nozzle.polytropic_efficiency = 0.98
inlet_nozzle.pressure_ratio = 0.98
turbofan.inlet_nozzle = inlet_nozzle
# low pressure compressor
low_pressure_compressor = RCAIDE.Library.Components.Powertrain.Converters.Compressor()
low_pressure_compressor.tag = 'lpc'
low_pressure_compressor.polytropic_efficiency = 0.91
low_pressure_compressor.pressure_ratio = 1.9
turbofan.low_pressure_compressor = low_pressure_compressor
# high pressure compressor
high_pressure_compressor = RCAIDE.Library.Components.Powertrain.Converters.Compressor()
high_pressure_compressor.tag = 'hpc'
high_pressure_compressor.polytropic_efficiency = 0.91
high_pressure_compressor.pressure_ratio = 10.0
turbofan.high_pressure_compressor = high_pressure_compressor
# low pressure turbine
low_pressure_turbine = RCAIDE.Library.Components.Powertrain.Converters.Turbine()
low_pressure_turbine.tag ='lpt'
low_pressure_turbine.mechanical_efficiency = 0.99
low_pressure_turbine.polytropic_efficiency = 0.93
turbofan.low_pressure_turbine = low_pressure_turbine
# high pressure turbine
high_pressure_turbine = RCAIDE.Library.Components.Powertrain.Converters.Turbine()
high_pressure_turbine.tag ='hpt'
high_pressure_turbine.mechanical_efficiency = 0.99
high_pressure_turbine.polytropic_efficiency = 0.93
turbofan.high_pressure_turbine = high_pressure_turbine
# combustor
combustor = RCAIDE.Library.Components.Powertrain.Converters.Combustor()
combustor.tag = 'Comb'
combustor.efficiency = 0.99
combustor.alphac = 1.0
combustor.turbine_inlet_temperature = 1500
combustor.pressure_ratio = 0.95
combustor.fuel_data = RCAIDE.Library.Attributes.Propellants.Jet_A()
turbofan.combustor = combustor
# core nozzle
core_nozzle = RCAIDE.Library.Components.Powertrain.Converters.Expansion_Nozzle()
core_nozzle.tag = 'core nozzle'
core_nozzle.polytropic_efficiency = 0.95
core_nozzle.pressure_ratio = 0.99
core_nozzle.diameter = 0.92
turbofan.core_nozzle = core_nozzle
# fan nozzle
fan_nozzle = RCAIDE.Library.Components.Powertrain.Converters.Expansion_Nozzle()
fan_nozzle.tag = 'fan nozzle'
fan_nozzle.polytropic_efficiency = 0.95
fan_nozzle.pressure_ratio = 0.99
fan_nozzle.diameter = 1.659
turbofan.fan_nozzle = fan_nozzle
# design turbofan
design_turbofan(turbofan)
# append propulsor to network
net.propulsors.append(turbofan)
#------------------------------------------------------------------------------------------------------------------------------------
# Port Propulsor
#------------------------------------------------------------------------------------------------------------------------------------
# copy turbofan
turbofan_2 = deepcopy(turbofan)
turbofan_2.tag = 'port_propulsor'
turbofan_2.origin = [[12.0,-4.38,-1.1]] # change origin
turbofan_2.nacelle.origin = [[12.0,-4.38,-2.1]]
# append propulsor to network
net.propulsors.append(turbofan_2)
#------------------------------------------------------------------------------------------------------------------------------------
# Assign propulsors to fuel line
fuel_line.assigned_propulsors = [[turbofan.tag, turbofan_2.tag]]
#------------------------------------------------------------------------------------------------------------------------------------
# Append fuel line to fuel line to network
net.fuel_lines.append(fuel_line)
# Append energy network to aircraft
vehicle.append_energy_network(net)
return vehicle
4. Payload Range Diagram#
With the vehicle setup complete, we can now create the payload range diagram. This involves defining the analysis to use and then calling the payload range function.
Define Analysis#
Before running the payload range diagram method, the analysis that will be used to evaluate the vehicle need to be defined. These analyses include:
Flight conditions: Including altitude, airspeed, and the active propulsors. An initial guess for maximum range is also provided here.
Weights: This analysis computes the weight based off of the vehicle setup. It uses aircraft geometry, aircraft type with a regression or physics based weight build-up to compute the weight.
Aerodynamics: This analysis computes the aerodynamic performance of the aircraft. In this case it uses the Vortex Lattice Method to compute the aerodynamic performance of the vehicle.
[4]:
def fuel_aircraft_base_analysis(vehicle):
# ------------------------------------------------------------------
# Initialize the Analyses
# ------------------------------------------------------------------
analyses = RCAIDE.Framework.Analyses.Vehicle()
# ------------------------------------------------------------------
# Weights
weights = RCAIDE.Framework.Analyses.Weights.Conventional()
weights.aircraft_type = "Transport"
weights.vehicle = vehicle
weights.settings.update_mass_properties = False
weights.settings.update_center_of_gravity = False
weights.settings.update_moment_of_inertia = False
weights.print_weight_analysis_report = False
analyses.append(weights)
# ------------------------------------------------------------------
# Aerodynamics Analysis
aerodynamics = RCAIDE.Framework.Analyses.Aerodynamics.Vortex_Lattice_Method()
aerodynamics.vehicle = vehicle
aerodynamics.settings.number_of_spanwise_vortices = 5
aerodynamics.settings.number_of_chordwise_vortices = 2
analyses.append(aerodynamics)
# ------------------------------------------------------------------
# Energy
energy = RCAIDE.Framework.Analyses.Energy.Energy()
energy.vehicle = vehicle
analyses.append(energy)
# ------------------------------------------------------------------
# Planet Analysis
planet = RCAIDE.Framework.Analyses.Planets.Earth()
analyses.append(planet)
# ------------------------------------------------------------------
# Atmosphere Analysis
atmosphere = RCAIDE.Framework.Analyses.Atmospheric.US_Standard_1976()
atmosphere.features.planet = planet.features
analyses.append(atmosphere)
# done!
return analyses
[5]:
def fuel_aircraft_mission_setup(analyses):
# ------------------------------------------------------------------
# Initialize the Mission
# ------------------------------------------------------------------
mission = RCAIDE.Framework.Mission.Sequential_Segments()
mission.tag = 'mission'
Segments = RCAIDE.Framework.Mission.Segments
base_segment = Segments.Segment()
base_segment.state.numerics.number_of_control_points = 3
# ------------------------------------------------------------------
# Cruise Segment
# ------------------------------------------------------------------
segment = Segments.Cruise.Constant_Speed_Constant_Altitude(base_segment)
segment.tag = "cruise"
segment.analyses.extend( analyses.base )
segment.altitude = 35000 * Units.ft
segment.air_speed = 450 * Units['knots']
segment.distance = 2700 * Units.nmi
# define flight dynamics to model
segment.flight_dynamics.force_x = True
segment.flight_dynamics.force_z = True
# define flight controls
segment.assigned_control_variables.throttle.active = True
segment.assigned_control_variables.throttle.assigned_propulsors = [['starboard_propulsor','port_propulsor']]
segment.assigned_control_variables.body_angle.active = True
mission.append_segment(segment)
return mission
[6]:
def missions_setup(mission):
missions = RCAIDE.Framework.Mission.Missions()
mission.tag = 'base_mission'
missions.append(mission)
return missions
[7]:
# vehicle data
vehicle = vehicle_setup()
# take out control surfaces to make regression run faster
for wing in vehicle.wings:
wing.control_surfaces = Container()
# Set up vehicle configs
configs = RCAIDE.Library.Components.Configs.Config.Container()
base_config = RCAIDE.Library.Components.Configs.Config(vehicle)
base_config.tag = 'base'
configs.append(base_config)
# create analyses
analyses = RCAIDE.Framework.Analyses.Analysis.Container()
# build a base analysis for each config
for tag,config in configs.items():
analysis = fuel_aircraft_base_analysis(config)
analyses[tag] = analysis
# mission analyses
mission = fuel_aircraft_mission_setup(analyses)
# create mission instances (for multiple types of missions)
missions = missions_setup(mission)
Run Payload Range Method#
Here, the payload range diagram method, located in the RCAIDE.Methods.Performance.Payload_Range_Diagram module, is called. This method computes the payload range diagram for the aircraft. It accepts the vehicle, assigned propulsors, weights analysis, aerodynamics analysis, cruise airspeed, cruise altitude, and maximum range guess as inputs.
[8]:
payload_range_results = compute_payload_range_diagram(mission = missions.base_mission)
Mission Solver Initiated
0%| | 0/100 [00:00<?, ?it/s]
Solving cruise segment.
100%|██████████| 100/100 [00:01<00:00, 58.52it/s]
0%| | 0/100 [00:00<?, ?it/s]
Mission Solver Initiated
100%|██████████| 100/100 [00:01<00:00, 59.69it/s]
0%| | 0/100 [00:00<?, ?it/s]
Solving cruise segment.
Mission Solver Initiated
100%|██████████| 100/100 [00:01<00:00, 59.29it/s]
0%| | 0/100 [00:00<?, ?it/s]
Solving cruise segment.
Mission Solver Initiated
100%|██████████| 100/100 [00:01<00:00, 59.47it/s]
0%| | 0/100 [00:00<?, ?it/s]
Solving cruise segment.
Mission Solver Initiated
100%|██████████| 100/100 [00:01<00:00, 58.91it/s]
0%| | 0/100 [00:00<?, ?it/s]
Solving cruise segment.
Mission Solver Initiated
100%|██████████| 100/100 [00:01<00:00, 59.36it/s]
0%| | 0/100 [00:00<?, ?it/s]
Solving cruise segment.
Mission Solver Initiated
100%|██████████| 100/100 [00:01<00:00, 59.52it/s]
0%| | 0/100 [00:00<?, ?it/s]
Solving cruise segment.
Mission Solver Initiated
100%|██████████| 100/100 [00:01<00:00, 59.20it/s]
0%| | 0/100 [00:00<?, ?it/s]
Solving cruise segment.
Mission Solver Initiated
100%|██████████| 100/100 [00:01<00:00, 59.40it/s]
0%| | 0/100 [00:00<?, ?it/s]
Solving cruise segment.
Mission Solver Initiated
100%|██████████| 100/100 [00:02<00:00, 44.78it/s]
0%| | 0/100 [00:00<?, ?it/s]
Solving cruise segment.
Mission Solver Initiated
100%|██████████| 100/100 [00:02<00:00, 45.20it/s]
0%| | 0/100 [00:00<?, ?it/s]
Solving cruise segment.
Mission Solver Initiated
100%|██████████| 100/100 [00:02<00:00, 44.91it/s]
